Understanding Galaxy Data Managers

Author(s) orcid logoWolfgang Maier avatar Wolfgang Maier
Overview
Creative Commons License: CC-BY Questions:

  • What are Data Managers and why are they needed?

  • How do you write a Data Manager Tool?

  • How do you test a Data Manager Tool?

Objectives:

  • Understand the idea behind and the concept of Galaxy Data Managers

  • Understand what components are needed to write your own Data Manager Tool

  • Know how to test a Data Manager and be aware of the limitations of the current test framework with respect to Data Managers

Time estimation: 2 hours
Level: Introductory
Supporting Materials:
Published: Oct 6, 2026
Last modification: Oct 6, 2026
License: Tutorial Content is licensed under Creative Commons Attribution 4.0 International License. The GTN Framework is licensed under MIT
Revision: 1

What are Data Managers and why are they needed?

Many tools run with two kinds of input data: some experimental data specific to the tool run (like, e.g., sequencing data) and other data, which stays the same across a range of different tool runs (e.g. a reference genome, or some genome annotations that are the same across runs for the same organism).

Forcing users to provide that second type of data for every tool run is undesirable because:

  • some of that data is complicated to gather from public sources or needs some preprocessing
  • it leads to unnecessary copies of data (of often very significant size) that would better be reused across user accounts

One possible solution (which was actually used in the early days of Galaxy) is to have Galaxy server admins collect and prepare commonly used data, store it on the server and record the location along with other metadata in a simple tab-separated so-called .loc file. Tools can then declare select parameters that are populated with the records of specific .loc files, can access the paths stored in them and, at tool run time, retrieve the data cached on the server.

While this is user-friendly, it shifts the burden of making cached data available to admins. With more and more tools requiring data of very different formats, this approach becomes increasingly unmanageable because, for each tool, an admin has to research where to obtain the data, or how to calculate it, and whether it needs some reformatting or other pre-processing before being usable by tools.

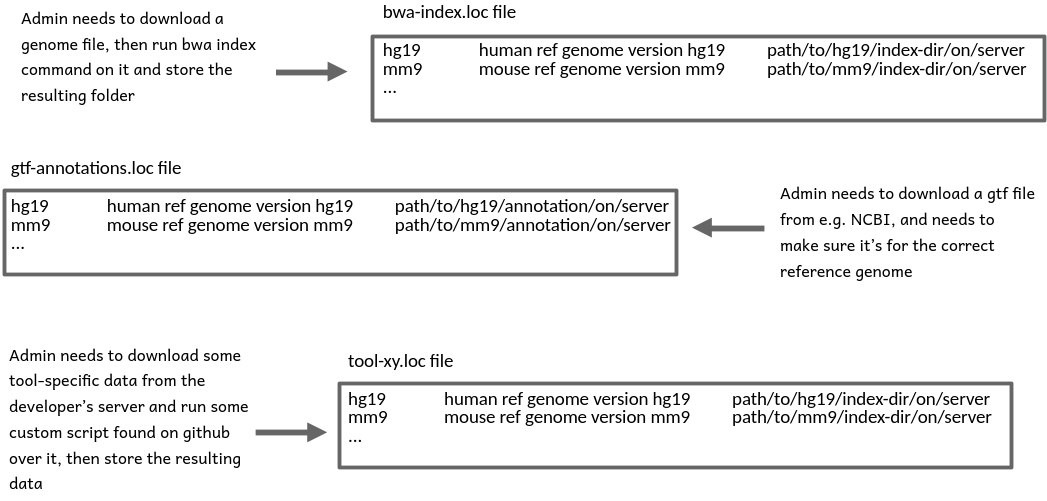

The issue of maintaining different kinds of data with the .loc files approach illustrated through three examples. Open image in new tab

Figure 1: The issue of maintaining different kinds of data with the .loc files approach

In principle, admins could automate some of this work through scripts, but it would be great to not have each admin reinvent the wheel, and provide one, reproducible way of installing any given reference data instead.

The idea behind Data Managers

Just like admin-installed data found via .loc files frees the user from having to care about all the details of how to obtain the data, special tools, ideally written by people who know how to obtain and set up certain types of data, should automate data collection and preparation, and the writing of .loc file records, and make life easier for admins. In other words, admins become users themselves. They don’t have to know all the details, but just run a tool that “knows” how to install a certain type of data on the server.

Comment: Reference document

This tutorial is an attempt to describe the different parts and functions of Data Managers in a way that is structured as logically as possible.

An in-depth, technical explanation of this matter is provided at https://docs.galaxyproject.org/en/latest/dev/data_managers.html and, when in doubt, that material should be considered the reference document for Data Managers.

Agenda

In this tutorial, we will cover:

  1. What are Data Managers and why are they needed?
    1. The idea behind Data Managers
  2. Components of a Data Manager
  3. How are Data Managers different from regular tools?
  4. How does a Data Manager communicate with Galaxy?
  5. How to test Data Manager Tools?
    1. Testing Data Managers and their client tools in combination
  6. Data Manager Checklist

Components of a Data Manager

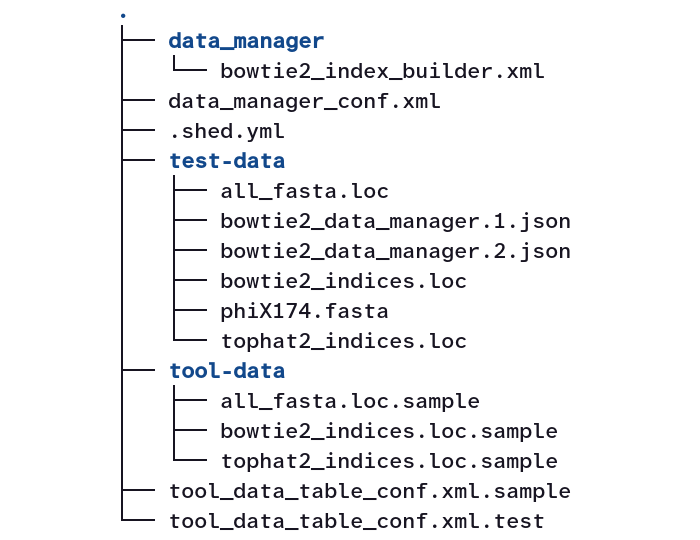

Here you see a tree view of the files that together constitute the widely used bowtie2 Data Manager:

Terminal tree view of the folder structure of the bowtie2 Data Manager. Open image in new tab

Figure 2: Layout of a typical Data Manager folder

Lets look at these components one-by-one:

  1. There’s a data_manager subfolder with the actual Data Manager Tool defined through a familiar tool xml file.

    This is what the admin is interacting with when installing new data (bowtie2 indices in this case).

  2. In the root folder of the Data Manager, there is a Data Manager Configuration file.

    This file is always named data_manager_conf.xml. It declares, which .loc files the Data Manager will write to, defines how the output of the Data Manager Tool is to be translated into .loc file records, and where exactly Galaxy should store the data downloaded by the Data Manager Tool.

    When talking about Data Managers, their .loc files are called Data Tables.

  3. A .shed.yml file that serves the same purpose (of declaring metadata for the Galaxy toolshed) as for regular tools.

    We will not discuss the contents of this file any further here.

  4. A test-data folder with, you may guess it, data for testing the Data Manager.

    We will discuss testing Data Managers at the end of the tutorial.

  5. A tool-data folder

    All tools, including regular ones, that use Data Tables must include a tool-data folder. In it, there needs to be one, typically empty or comments-only .loc.sample file for every used Data Table.

    Data Manager Tools are special in that they write to Data Tables instead of just reading from them, but the rule of “one .loc.sample file for each Data Table used” is independent of whether the Data Tables are read from or written to. In fact, Data Manager Tools may both write to Data Tables and use other Data Tables as a source for populating select boxes in their tool interface. The bowtie2 Data Manager, for example, lets the admin select the reference genome to build an index for from the list of installed genomes read from the all_fasta Data Table. The index it builds is useful for both bowtie2 and tophat2 so the path to the installed index will get recorded in the corresponding two Data Tables. The tool-data folder of this Data Manager, therefor, has three .loc.sample files - all_fasta.loc.sample, bowtie2_indices.loc.sample and tophat2_indices.loc.sample. Each of these files consists only of comment lines describing the .loc file purpose and expected structure.

    Comment lines in .loc.sample files are optional and just that: comments that are ignored by Galaxy. The only place that Galaxy reads .loc file structure from is the Data Table configuration file discussed next.

    Tools can use .loc.sample files with actual record lines to point to data directly shipping with the tool. That data would then also be stored in the tool-data folder (which explains its name). Most tools and Data Managers, however, do not ship data directly and provide empty .loc.sample files with optional comment lines like the bowtie2 Data Manager example.

  6. A Data Table configuration file

    This file is always named tool_data_table_conf.xml.sample and provides the layout information for all Data Tables the Data Manager operates on and uses.

    For the bowtie2 Data Manager, this file has the following content:

    <tables>
    <!-- Locations of all fasta files under genome directory -->
    <table name="all_fasta" comment_char="#">
        <columns>value, dbkey, name, path</columns>
        <file path="tool-data/all_fasta.loc" />
    </table>
    <!-- Locations of indexes in the Bowtie2 mapper format -->
    <table name="bowtie2_indexes" comment_char="#">
        <columns>value, dbkey, name, path</columns>
        <file path="tool-data/bowtie2_indices.loc" />
    </table>
    <!-- Locations of indexes in the Bowtie2 mapper format for TopHat2 to use -->
    <table name="tophat2_indexes" comment_char="#">
        <columns>value, dbkey, name, path</columns>
        <file path="tool-data/tophat2_indices.loc" />
    </table>
</tables>

    The Data Tables mentioned here are the same as the ones the tool-data folder has .loc.sample files for, but here we find the metadata for these tables, i.e. their name and .loc file name (which could, but probably shouldn’t be different) and the identifiers for the different columns in each table.

    Comment: Rules and best practices around Data Table columns

    When you are declaring the layout of a new Data Table that no other tool is using yet, you are, in principle, free to choose, how many columns it should feature and what their names should be.

    There are, however, a few commonly used column names with agreed upon meaning in Data Tables that you should be aware of. These are the value, name and path columns that nearly every Data Table should use, and the column dbkey, which is very widely used in Galaxy tools and Data Tables from the field of genomics to associate Data Table records with reference genomes.

    For these columns, please follow the community Standards for Data Manager Tools.

    Warning: Released Data Table layout information can never be changed again!

    Every version of every regular tool and of every Data Manager Tool using a given Data Table needs to declare its expected layout in a tool_data_table_conf.xml.sample. An instance of Galaxy that gets conflicting layout information about the same Data Table from different tools or tool versions will refuse to load the Data Table (or even refuse to start at all) until an admin resolves the conflict.

    This means that once you’re publicly releasing a Data Manager Tool or regular tool with layout info for a new Data Table, e.g. by uploading the tool to a Galaxy Toolshed, you must never change its layout again in a later version of that tool, or in a new tool reusing the Data Table! No renaming of columns, no reshuffling, and no addition of new columns! You need to keep that layout frozen!

    It is, therefor, important to consider a new Data Table’s columns very carefully:

    • Use the standard column names, value, name, path and dbkey, appropriately (see above)

    • Think about which metadata you need to capture in the Data Table and reserve a column for it

      Classic issue: if you are unsure whether the data the Data Table references will be versioned at some point, better assume it will be and add that version column now!

    The only way to amend an inadequate table layout later is to have new tool versions declare a new Data Table. Try to avoid that confusing scenario if you can!

  7. A Data Table configuration test file

    This file is always named tool_data_table_conf.xml.test, is very similar to the tool_data_table_conf.xml.sample, but exists only for testing purposes, which, again, will be discussed at the end of the tutorial.

How are Data Managers different from regular tools?

  1. (Normally) only admins can run them through the Admin interface of Galaxy

  2. They do create an output dataset in your history, but their “side-effects” are what really matters. As such side-effects Data Managers will:

    • typically, download or compute some data.
    • always instruct Galaxy to write at least one line of tab-separated info to at least one Data Table file.

    • if data was downloaded or computed, instruct Galaxy to

      • move the data to a permanent storage location
      • record the path to that location in the newly created Data Table record

How does a Data Manager communicate with Galaxy?

  1. It declares itself a Data Manager through the tool_type="manage_data" attribute.

    <tool id="example_dm" name="An example Data Manager" version="1.0" tool_type="manage_data" profile="23.0">

    This has several consequences:

    1. The tool will only appear in the Admin user interface.
    2. Galaxy will expect the output of the tool to be of format="data_manager_json" and its content to describe which columns should be added to new lines in which Data Tables.

    3. Galaxy will expect any data downloaded or computed by the tool to live in that output’s extra_files_path.

      For example, if the output section of the Data Manager looks like this:

      <outputs>
    <data name="out_file" format="data_manager_json" label="${tool.name}"/>
</outputs>

      it should make sure that its command section deposits data to be stored by Galaxy in '$out_file.extra_files_path'.

    4. The data_manager_json output file that the wrapper declares will exist before the command section runs and will contain a mapping of the input parameters, among other things. You do not have to read the file if you don’t want to, but you will have to overwrite it!
    Comment: Minimal profile version for Data Managers

    Data Managers were executed in Galaxy’s main environment until release 18.09!

    This means:

    • if you want to use requirements in a Data Manager Tool, you should set profile="18.09" or higher
    • if you are bumping the profile version of an existing Data Manager to beyond 18.09, you may have to add requirements to it that bring in things the old version happened to find in Galaxy’s environment.

  2. In its command section (or in a helper script called from there), the Data Manager Tool

    1. overwrites the already existing output file with a json of the items that should be added to one or more Data Tables.

    2. creates the folder at output.extra_files_path and deposits any data there that Galaxy should move then to a permanent storage location

  3. The Data Manager Tool ships with a data_manager_conf.xml file, which forms the bridge between the data_manager_json file that it produces as output and the Data Table files Galaxy is supposed to add lines to.

    An example config file:

     <?xml version="1.0"?>
 <data_managers>
   <data_manager tool_file="data_manager/data_manager_cat.xml" id="data_manager_cat" >
     <data_table name="cat_database">  <!-- Defines a Data Table to be modified. -->
       <output> <!-- Handle the output of the Data Manager Tool -->
         <column name="value" /> <!-- columns that are going to be specified by the Data Manager Tool -->
         <column name="name" />  <!-- columns that are going to be specified by the Data Manager Tool -->
         <column name="database_folder" output_ref="out_file" >
           <move type="directory" relativize_symlinks="True">
             <source>${database_folder}</source>
             <target base="${GALAXY_DATA_MANAGER_DATA_PATH}">CAT/${database_folder}</target>
           </move>
           <value_translation>${GALAXY_DATA_MANAGER_DATA_PATH}/CAT/${database_folder}</value_translation>
           <value_translation type="function">abspath</value_translation>
         </column>
         <column name="taxonomy_folder" output_ref="out_file" >
           <move type="directory" relativize_symlinks="True">
             <source>${taxonomy_folder}</source>
             <target base="${GALAXY_DATA_MANAGER_DATA_PATH}">CAT/${taxonomy_folder}</target>
           </move>
           <value_translation>${GALAXY_DATA_MANAGER_DATA_PATH}/CAT/${taxonomy_folder}</value_translation>
           <value_translation type="function">abspath</value_translation>
         </column>
       </output>
     </data_table>
   </data_manager>
 </data_managers>

    This file declares column names for a single Data Table (cat_database) that Galaxy should add lines to based on the data_manager_json file returned by the data_manager_cat tool, and which might look like this:

    {'data_tables': {
    'cat_database': [
        {
            'database_folder': '<extra_files_path>/a_CAT_database',
            'name': '<extra_files_path>',
            'taxonomy_folder': '<extra_files_path>/a_taxonomy',
            'value': '<extra_files_path>'
        }
    ]
}}

    Here, each innermost dictionary corresponds to one line that Galaxy should add to the Data Table cat_database and the keys in it match the column names declared in the data_manager_conf.xml file so Galaxy knows which dict value it should write into which column of the Data Table.

    The example tool downloads data, then extracts it into two folders, a_CAT_database and a_taxonomy under its output’s extra_files_path folder. The tool wants Galaxy to record the extra_files_path folder name both in the value column and in the name column of the cat_database Data Table.

    It also wants to store the paths to the extracted database_folder and taxonomy_folder to let tools, that later want to use that data, discover it from the corresponding columns of the Data Table.

    However, here’s the issue: The Data Manager Tool at run time knows only the extra_files_path, but not the ultimate location that Galaxy will move the data to. This is where the more complicated parts of the above data_manager_conf.xml file enter the scene:

    <column name="database_folder" output_ref="out_file" >
    <move type="directory" relativize_symlinks="True">
        <source>${database_folder}</source>
        <target base="${GALAXY_DATA_MANAGER_DATA_PATH}">CAT/${database_folder}</target>
    </move>
    <value_translation>${GALAXY_DATA_MANAGER_DATA_PATH}/CAT/${database_folder}</value_translation>
    <value_translation type="function">abspath</value_translation>
</column>
<column name="taxonomy_folder" output_ref="out_file" >
    <move type="directory" relativize_symlinks="True">
        <source>${taxonomy_folder}</source>
        <target base="${GALAXY_DATA_MANAGER_DATA_PATH}">CAT/${taxonomy_folder}</target>
    </move>
    <value_translation>${GALAXY_DATA_MANAGER_DATA_PATH}/CAT/${taxonomy_folder}</value_translation>
    <value_translation type="function">abspath</value_translation>
</column>

    The definitions of the database_folder column hold two types of instructions for Galaxy:

    1. The <move> element says that Galaxy should take (see the <source> element) the data that lives where the ${database_folder} item of the data_manager_json output says it lives and move it to a destination CAT/${database_folder} under the base path indicated by ${GALAXY_DATA_MANAGER_DATA_PATH} (which itself is the configured storage path for managed data of the Galaxy instance).

    2. The first <value_translation> element says that Galaxy should not write the Data Manager Tool-provided value for database_folder directly, but instead first translate it to ${GALAXY_DATA_MANAGER_DATA_PATH}/CAT/${database_folder}.

    3. If you compare the resulting string with the <move> instructions, you will see that it will now be the same as the ultimate path to the folder after Galaxy has moved it.

      The second <value_translation> element simply says that Galaxy should turn the result of the first translation into an absolute path on the system. The result is then the value that will get written into the database_folder column of the cat_database table.

    The same logic is then used again to move the taxonomy folder to its final destination and to obtain the value to write to the corresponding Data Table column.

How to test Data Manager Tools?

The key file for testing a Data Manager Tool is tool_data_table_conf.xml.test in the root folder of the Data Manager. This file is an exact copy of the tool_data_table_conf.xml.sample file in that same folder - except that the:

<file path="tool-data/[Table name].loc" />

lines in every table declaration are changed to:

<file path="${__HERE__}/test-data/[Table name].loc" />

where ${__HERE__} references the folder that the tool_data_table_conf.xml.test file lives in.

For the bowtie2 Data Manager, for example, the file’s content is this:

   <tables>
       <!-- Locations of indexes in the Bowtie2 mapper format -->
       <table name="bowtie2_indexes" comment_char="#">
           <columns>value, dbkey, name, path</columns>
           <file path="${__HERE__}/test-data/bowtie2_indices.loc" />
       </table>
       <!-- Locations of indexes in the Bowtie2 mapper format for TopHat2 to use -->
       <table name="tophat2_indexes" comment_char="#">
           <columns>value, dbkey, name, path</columns>
           <file path="${__HERE__}/test-data/tophat2_indices.loc" />
       </table>
       <!-- Locations of all fasta files under genome directory -->
       <table name="all_fasta" comment_char="#">
           <columns>value, dbkey, name, path</columns>
           <file path="${__HERE__}/test-data/all_fasta.loc" />
       </table>
   </tables>

The referenced .loc files in the test-data folder must exist, but can be empty if the Data Manager is supposed to write to them as part of the test run. If the Data Manager needs to read the referenced Data Table to populate its tool interface, you need to have at least one record in the corresponding test-data/[Table name].loc file.

For example, the bowtie2 Data Manager needs to read from the all_fasta table and ships with this content of test-data/all_fasta.loc (comment lines omitted for brevity):

   phiX174    phiX174    phiX 174    ${__HERE__}/phiX174.fasta

The last column uses the special variable ${__HERE__} again, which means the folder, i.e. test-data, that the file using it lives in. The file test-data/phiX174.fasta, in turn, holds the tiny genome of the bacteriophage Phi X 174 that a test run of the Data Manager is supposed to create a bowtie2 index for.

Taken together, this arrangement of test files allows the Data Manager Tool wrapper to define the following simple test case:

   <test>
       <param name="all_fasta_source" value="phiX174"/>
       <output name="out_file" value="bowtie2_data_manager.1.json"/>
   </test>

When executed with planemo test, this will:

  1. load the Data Tables declared in tool_data_table_conf.xml.test into Galaxy,
  2. select the phiX174 record from the test-data/all_fasta.loc table,
  3. pass the path to the test-data/phiX174.fasta file defined in the record to the command line section of the tool, and
  4. verify that the tool’s primary output matches the content of the file bowtie2_data_manager.1.json, which also lives in the test-data folder.

Unfortunately, the only automated tests you can run on a Data Manager Tool are the ones available for regular tools, too.

This means that, with automated tests, you can verify assumptions about the tool’s data_manager_json output, about the command line formed and the stdout and stderr generated, but you need to verify manually that the Data Manager framework detects any data in the extra_files_path and moves it to the intended location.

For this reason, planemo serve is a very important command to use during any work on Data Managers!

Comment: Getting planemo to work on a Data Managers

planemo test and planemo serve work just fine for Data Managers, if you keep in mind that a Data Manager is more than just the tool xml file. If you’re following the standard layout of Data Managers with the tool xml file in a subfolder, you need to run planemo from outside that subfolder to have it discover all required files beyond the tool xml, but point it to the tool xml to test or serve.

  • planemo serve data_manager/bowtie2_index_builder.xml run from the parent directory of the data_manager subfolder and
  • planemo serve data_managers/data_manager_bowtie2_index_builder/data_manager/bowtie2_index_builder.xml run from the root folder of the tools-iuc repo

would both work fine.

With planemo serve specifically, don’t be surprised if the tool doesn’t show up in the tools panel - it’s not supposed to, but it’s accessible from the Admin interface under “Local Data”.

With a correctly written tool_data_table_conf.xml.test the Data Manager, during testing, will read from and write to the .loc files in its test-data folder. This data is persistent across planemo runs as is the actual installed data, so after testing with planemo serve, you can inspect the .loc file records that have been written and check the path recorded there to see if the data has been installed the way you intended.

Before committing the test-data folder you may want to consider clearing the Data Tables you may have populated in it.

Testing Data Managers and their client tools in combination

As said above, planemo serve and planemo test need to be run from the root folder of the Data Manager, but it’s possible to point planemo to multiple xml files to test and you can use this to test both the Data Manager Tool and a tool using its Data Table in one session through, e.g.:

  • planemo serve data_manager/bowtie2_index_builder.xml ../../tools/bowtie2/bowtie2_wrapper.xml run from the parent directory of the data_manager subfolder, or
  • planemo serve data_managers/data_manager_bowtie2_index_builder/data_manager/bowtie2_index_builder.xml tools/bowtie2/bowtie2_wrapper.xml run from the root folder of the tools-iuc repo.

If you have previously served your Data Manager in isolation and installed some data, then, because this brings the Data Manager’s test-data folder back into scope, that data will be immediately usable by the client tool.

Data Manager Checklist

To sum up the key points of the above discussion, here is a practical checklist for Data Manager Tools. In a few places this list goes beyond Galaxy’s requirements for Data Manager Tools, but recommends standard approaches.

Hands On: Checklist for Data Manager Tools

  1. Quick check of required files and key content

    • Data Manager Tool XML

      • Tool XML (and helper scripts, if any) in data_manager subfolder
      • Tool XML declares tool_type="manage_data" and a recent profile

    • Declaration of Data Tables

      • tool_data_table_conf.xml.sample present in root folder
      • file declares the layout of every Data Table touched by the tool and

      • lists the columns of each table,

      • references a .loc file for every declared Data Table via a <file path="tool-data/[Table name].loc" /> line
      • tool-data subfolder exists and has a [Table name].loc.sample file for every declared Data Table

    • Data Manager framework integration

      • data_manger_conf.xml file present in root folder

    • Toolshed readiness

      • .shed.yml file present in root folder

    • Data Manager tests

      • test-data folder exists
      • tool_data_table_conf.xml.test present in root folder

  2. Logic checks

    • Data Manager (or helper script) writes JSON to primary output
    • Data to be managed gets written to extra_files_path
    • <move> logic in data_manger_conf.xml handles transfer of all relevant content under extra_files_path to <target base="${GALAXY_DATA_MANAGER_DATA_PATH}"> destination
    • <value_translation> logic in data_manger_conf.xml handles rewrite of all paths to managed data to point to target destinations
    • Data Manager (or helper script) deletes any irrelevant data left behind under extra_files_path

  3. Manual cleanup work before commitiing / publishing

    • All .loc files in test-data, which may have been wriiten to during manual and/or automated testing of the Data Manager are reverted to their original state.
